Mammoth Pro+

NOW WITH 600D MYLAR AND 22MM POLES

  • Better light proof design
  • Quick and easy assembly
  • Strong frame with high quality corners and connectors
  • Available in a wide range of sizes
  • Big doors for easy access
  • Multiple inlets and outlets for flexible installation
Click to enlarge

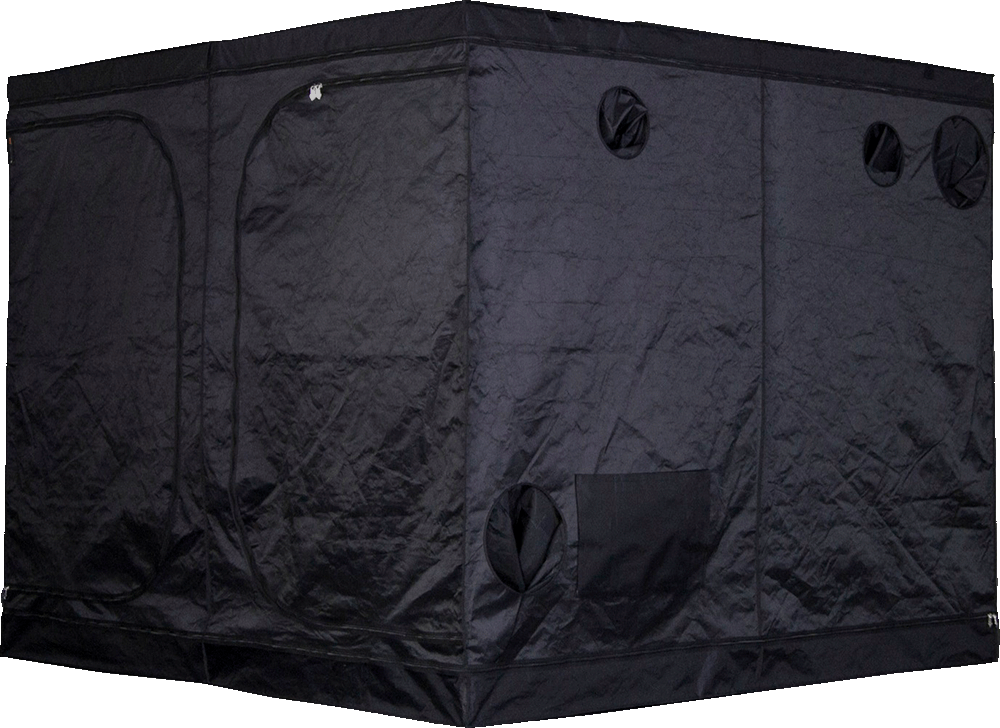

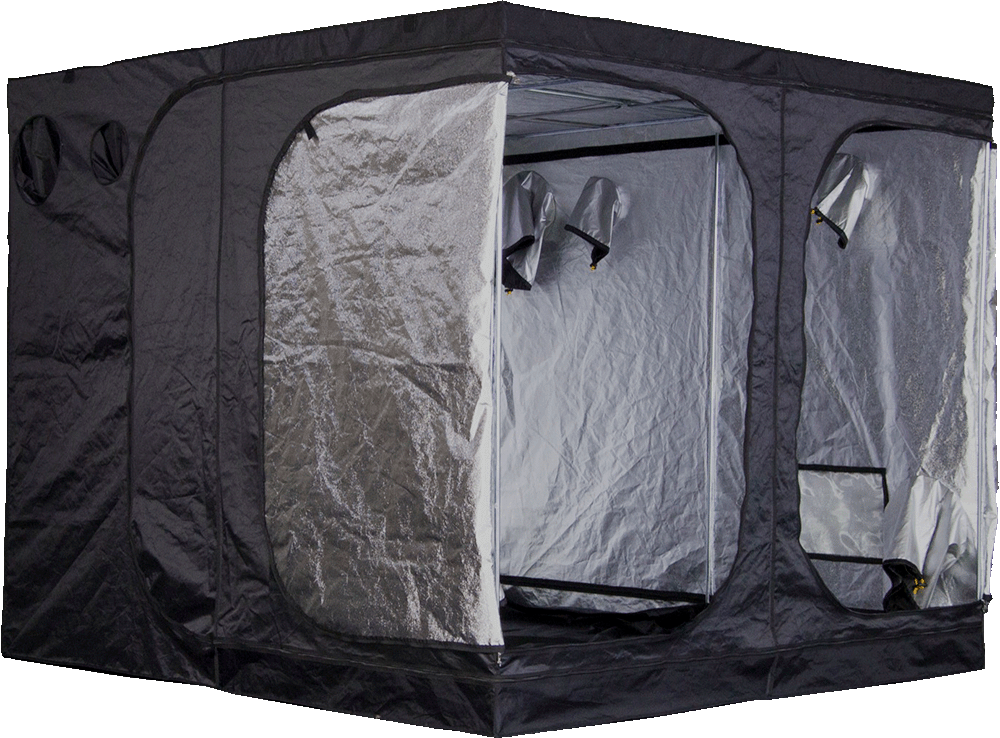

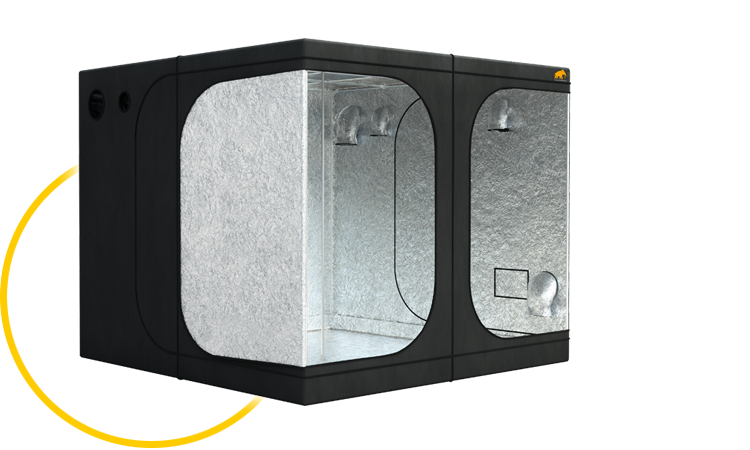

Mammoth Pro+ 240
Dimensions Volume Material Doors     Ventilation Water Tray
Assembled WxDxH m3   Front Rear Side Windows
450 x 450 x 1200 0.24 170D Silver 1 none none 1x 150x110 removeable
600 x 600 x 1400 0.50 170D Silver 1 none none 1x 300x200 none
800 x 800 x 1600 1.02 170D Silver 1 none none 1x 300x200 none
900 x 900 x 1800 1.30 170D Silver 1 none none 1x 300x200 none
1000 x 1000 x 1800 1.80 170D Silver 1 none none 1x 300x200 none
1200 x 1200 x 2000 2.88 170D Silver 1 none none 1x 300x200 none
1500 x 1500 x 2000 4.50 210D Silver 1 none none 1x 300x200 none
2400 x 1200 x 2000 5.76 170D Silver 2 2 1 1x 300x200 none
400 x 400 x 1200 0.19 600D Mylar 1 none none 2x 110x150 Removable
600 x 600 x 1400 0.50 600D Mylar 1 none none 2x 300x200 Removable
800 x 800 x 1800 1.15 600D Mylar 1 none none 2x 300x200 Removable
900 x 900 x 1600 1.30 600D Mylar 1 none none 2x 300x200 Removable
1000 x 1000 x 2000 2.00 600D Mylar 1 none none 2x 300x200 Removable
1200 x 1200 x 2000 2.88 600D Mylar 1 none none 2x 300x200 Removable
1500 x 1500 x 2000 4.50 600D Mylar 1 none none 2x 300x200 Removable
2000 x 2000 x 2000 8.00 600D Mylar 2 2 1 2x 300x200 Removable
2400 x 2400 x 2000 11.52 600D Mylar 2 2 1 2x 500x300 Removable
2400 x 1200 x 2000 5.76 600D Mylar 2 2 1 2x 300x200 Removable
1200 x 1200 x 2250 3.24 600D Mylar 1 none 2 2x 300x200 Removable
1520 x 1520 x 2250 0.51 600D Mylar 1 none 2 2x 300x200 Removable
2400 x 1200 x 2250 6.48 600D Mylar 2 1 2 2x 300x200 Removable
2400 x 2400 x 2250 12.96 600D Mylar 2 1 2 2x 300x200 Removable
3000 x 1500 x 2250 10.13 600D Mylar 2 1 2 2x 300x200 Removable
3000 x 3000 x 2250 20.25 600D Mylar 2 1 2 2x 300x200 Removable
2400 x 1200 x 2000 5.76 600D Mylar 2 2 1 1x 300x200 Removable
800 x 800 x 1800 1.15 600D Mylar 1 none none 2x 300x200 Removable
900 x 900 x 1800 1.46 600D Mylar 1 none none 2x 300x200 Removable
1000 x 1000 x 2000 2.00 600D Mylar 1 none none 2x 300x200 Removable
1200 x 1200 x 2000 2.88 600D Mylar 1 none none 2x 300x200 Removable
1500 x 1500 x 2000 4.50 600D Mylar 1 none none 2x 300x200 Removable
2000 x 2000 x 2000 8.00 600D Mylar 2 2 1 2x 300x200 Removable
2400 x 2400 x 2000 11.52 600D Mylar 2 2 1 2x 500x300 Removable
3000 x 3000 x 2000 18.00 600D Mylar 2 2 1 2x 500x300 Removable
1200 x 600 x 1600 1.15 600D Mylar 1 none none 2x 300x200 Removable
2400 x 1200 x 2000 5.76 600D Mylar 2 2 1 2x 300x200 Removable
3000 x 1500 x 2000 9.00 600D Mylar 2 2 1 2x 500x300 Removable
1800 x 1100 x 2150 4.26 600D Mylar 2 none none 3x Integrated
2200 x 1800 x 2150 8.51 600D Mylar 2 none 2 3x Integrated
1800 x 1100 x 2400 4.75 600D Mylar 2 none none 3x Integrated
2200 x 1800 x 2400 9.50 600D Mylar 2 none 2 3x Integrated
1200 x 1200 x 2150 3.10 600D Mylar 1 none none none Integrated
1500 x 1500 x 2150 4.84 600D Mylar 1 none none none Integrated
2400 x 2440 x 2150 12.59 600D Mylar 1 1 2 none Integrated
3000 x 3030 x 2150 19.54 600D Mylar 1 1 2 none Integrated
2400 x 3600 x 2250 19.44 600D Mylar 1 1 ZIP none none
2400 x 1200 x 2150 6.19 600D Mylar 1 1 none none Integrated
3000 x 1530 x 2150 9.87 600D Mylar 1 1 none none Integrated
2400 x 4800 x 2250 25.92 600D Mylar 1 1 ZIP none none
3000 x 6000 x 2250 40.50 600D Mylar 1 1 ZIP none none
1220 x 1220 x 2400 3.57 600D Mylar 1 none none none Integrated
1520 x 1520 x 2400 5.54 600D Mylar 1 none none none Integrated
2400 x 2440 x 2400 14.05 600D Mylar 1 1 2 none Integrated
3000 x 3030 x 2400 21.82 600D Mylar 1 1 2 none Integrated
2400 x 3600 x 2400 20.74 600D Mylar 1 1 2 none Integrated
2400 x 1200 x 2400 6.91 600D Mylar 1 1 none none Integrated
7500 x 15000 x 2400 270.00 1680D Mylar 2 2 2 none Integrated
2400 x 4800 x 2400 27.65 1680D Mylar 1 1 none none Integrated
3000 x 6000 x 2400 43.20 1680D Mylar 1 1 2 none Integrated
4500 x 9000 x 2250 97.20 600D Mylar 1 1 2 none none
900 x 900 x 2100 1.70 190D Mylar 2 none none 2x 300x200 Removable
1200 x 1200 x 2100 3.02 190D Mylar 2 none none 2x 300x200 Removable
900 x 900 x 1800 1.46 210D Silver 1 none none none none
900 x 600 x 600 0.32 190D Mylar 1 none none 2x 300x200 Removable
1200 x 600 x 1450 0.96 190D Mylar 1 none none none Removable
1200 x 1200 x 2250 3.24 600D Mylar 1 none 2 2x 300x200 Removable
6000 x 12000 x 2250 162.00 600D Mylar 1 1 ZIP none none
6000 x 12000 x 2400 172.80 1680D Mylar 2 2 2 none Integrated
Inlet/Outlet Dia.         Frame     Corners Equipment Hook Strap Chains
Layer Cable Inlet Outlet Cool Tube Dia. Thick. Material Material Hangers
Single 1x 76 1x 152 1x 152 none 12.7 0.5 Steel PP Copolymer 4 none 2 n/a
Single 1x 76 1x 152 1x 152 none 16 0.4 Steel PP Copolymer 4 none 2 n/a
Single 1x 76 1x 152 1x 152 none 16 0.4 Steel PP Copolymer 4 none 2 n/a
Single 1x 76 1x 152 1x 152 none 16 0.4 Steel PP Copolymer 4 none 2 n/a
Single 1x 76 1x 203 1x 203 none 16 0.4 Steel PP Copolymer 4 none 2 n/a
Single 1x 76 1x 203 1x 203 none 16 0.4 Steel PP Copolymer 4 none 2 n/a
Single 1x 76 1x 203 1x 203 none 16 0.4 Steel PP Copolymer 4 none 2 n/a
Single 3x 76 1x 254 2x 254 none 16 0.4 Steel PP Copolymer 8 none 2 n/a
Single 1x 76 1x 152 1x 152 none 12.7 0.5 Steel PP Copolymer 2 none 2 n/a
Single 1x 76 1x 152 1x 152 none 19 0.5 Steel PP Copolymer 2 none 2 n/a
Single 1x 76 1x 152 1x 152 none 19 0.5 Steel PP Copolymer 2 none 2 n/a
Single 1x 76 1x 152 1x 152 none 19 0.5 Steel PP Copolymer 2 none 3 n/a
Single 1x 76 1x 203 1x 203 none 19 0.5 Steel PP Copolymer 2 none 2 n/a
Single 1x 76 1x 203 1x 203 none 19 0.5 Steel PP Copolymer 2 none 2 n/a
Single 1x 76 1x 203 1x 203 none 19 0.5 Steel PP Copolymer 2 none 2 n/a
Single 3x 76 2x 203 2x 203 2x 203 19 0.5 Steel PP Copolymer 8 none 4 n/a
Single 3x 76 2x 305 2x 305 2x 203 19 0.5 Steel PP Copolymer 8 none 4 n/a
Single 3x 76 1x 254 2x 254 none 19 0.5 Steel PP Copolymer 4 none 2 n/a
Dual 2x 76 2x 254 3x 254 2x 254 22 0.5 Steel PP Copolymer 6 5 2 n/a
Dual 2x 76 2x 254 3x 254 2x 254 22 0.5 Steel PP Copolymer 6 5 2 n/a
Dual 3x 76 2x 254 2x 254 2x 200 22 0.5 Steel PP Copolymer 8 10 2 n/a
Dual 3x 76 4x 305 4x 305 4x 200 22 0.5 Steel PP Copolymer 16 15 4 n/a
Dual 3x 76 2x 254 2x 254 2x 200 22 0.5 Steel PP Copolymer 8 10 2 n/a
Dual 3x 76 4x 305 4x 305 4x 200 22 0.5 Steel PP Copolymer 16 15 4 n/a
Single 3x 76 1x 254 2x 254 none 16 0.5 Steel PP Copolymer 4 none 2 n/a
Dual 1x 76 2x 152 1x 152 none 22 0.5 Steel PP Copolymer 6 5 2 n/a
Dual 2x 76 2x 203 1x 203 2x 203 22 0.5 Steel PP Copolymer 6 5 2 n/a
Dual 2x 76 2x 203 3x 203 2x 203 22 0.5 Steel PP Copolymer 6 5 2 n/a
Dual 2x 76 2x 203 3x 203 2x 203 22 0.5 Steel PP Copolymer 6 5 2 n/a
Dual 2x 76 2x 254 3x 254 2x 203 22 0.5 Steel PP Copolymer 6 5 2 n/a
Dual 3x 76 2x 254 2x 254 4x 254 22 0.5 Steel PP Copolymer 8 15 4 n/a
Dual 3x 76 2x 305 2x 305 4x 203 22 0.5 Steel PP Copolymer 16 15 4 n/a
Dual 3x 76 2x 305 4x 305 4x 203 22 0.5 Steel PP Copolymer 16 15 4 n/a
Dual 2x 76 2x 152 1x 152 none 22 0.5 Steel PP Copolymer 6 5 2 n/a
Dual 3x 76 2x 254 2x 254 2x 203 22 0.5 Steel PP Copolymer 8 10 2 n/a
Dual 3x 76 2x 254 2x 254 2x 203 22 0.5 Steel PP Copolymer 8 10 2 n/a
Dual 6x 76 2x 275 2x 275 none 22 0.7 Steel PA66 6 5 2 n/a
Dual 6x 76 2x 350 2x 350 none 22 0.7 Steel PA66 8 5 2 n/a
Dual 6x 76 2x 275 2x 275 none 22 0.7 Steel PA66 6 5 2 n/a
Dual 6x 76 2x 350 2x 350 none 22 0.7 Steel PA66 8 5 2 n/a
Dual 3x 76 4x 275 4x 275 2x 275 25.4 1 Steel PA66 none none none 2
Dual 3x 76 4x 275 4x 275 2x 275 25.4 1 Steel PA66 none none none 2
Dual 12x 100 4x 350 4x 350 4x 200 25.4 1 Steel PA66 none none none 8
Dual 12x 100 4x 350 4x 350 4x 200 25.4 1 Steel PA66 none none none 8
Dual 4x 76 4x 350 8x 350 none 25.4 0.5 Steel PP Copolymer 12 10 none 8
Dual 10x 100 4x 350 4x 350 4x 200 25.4 1 Steel PA66 none none none 4
Dual 10x 100 4x 350 4x 350 4x 200 25.4 1 Steel PA66 none none none 4
Dual 4x 76 4x 350 8x 350 none 25.4 0.5 Steel PP Copolymer 16 10 none 16
Dual 4x 76 4x 350 4x 350 4x 200 25.4 1 Steel PP Copolymer 16 10 none 16
Dual 3x 76 4x 275 4x 275 2x 275 25.4 1 Steel PA66 none none none 2
Dual 3x 76 4x 275 4x 275 2x 275 25.4 1 Steel PA66 none none none 2
Dual 12x 100 4x 350 6x 350 4x 200 25.4 1 Steel PA66 none none none 8
Dual 12x 100 4x 350 6x 350 4x 200 25.4 1 Steel PA66 none none none 8
Dual 12x 100 4x 350 6x 350 4x 200 25.4 1 Steel PA66 none none none 8
Dual 10x 100 4x 350 6x 350 4x 200 25.4 1 Steel PA66 none none none 4
Dual 12x 100 4x 350 8x 350 4x 200 28 0.8 Steel PP Polymer 200 10 none 64
Dual 12x 100 4x 350 8x 350 4x 200 28 0.8 Steel PP Copolymer 32 10 none 16
Dual 12x 100 4x 350 8x 350 4x 200 28 0.8 Steel PP Copolymer 32 10 none 16
Dual 12x 100 4x 350 8x 350 4x 200 28 0.8 Steel PP Copolymer 72 10 none 32
Single 2x 76 2x 203 2x 203 2x 203 16 0.5 Steel PP Copolymer 4 none 4 n/a
Single 2x 76 2x 203 2x 203 2x 203 16 0.5 Steel PP Copolymer 4 none 4 n/a
Single 1x 76 Permissive 1x 203 none 16 0.5 Steel PP Copolymer 2 none none n/a
Single 1x 76 n/a 1x 152 none 16 0.5 Steel PP Copolymer 3 none none n/a
Single 1x 76 Permissive 1x 203 none 16 n/a Steel n/a none none none n/a
Dual 2x 76 4x 305 4x 305 4x 200 22 0.5 Steel PP Copolymer 16 15 4 n/a
Dual 4x 76 4x 350 8x 350 none 25.4 0.5 Steel PP Copolymer 64 10 none 32
Dual 12x 100 4x 350 8x 350 4x 200 28 0.8 Steel PP Copolymer 128 10 none 64
